Colour Signalling — HLG (Hybrid Log-Gamma)
Hybrid Log-Gamma, the broadcast HDR transfer designed to stay watchable on an SDR display. As with the HDR10 fixture, the picture itself is SDR content carrying HLG signalling, so this tests transfer-function detection and the SDR fallback path rather than HDR rendering. Every clip in this group carries the SAME picture and differs only in its colour signalling, so any difference in how a player renders them is entirely a metadata-handling difference.

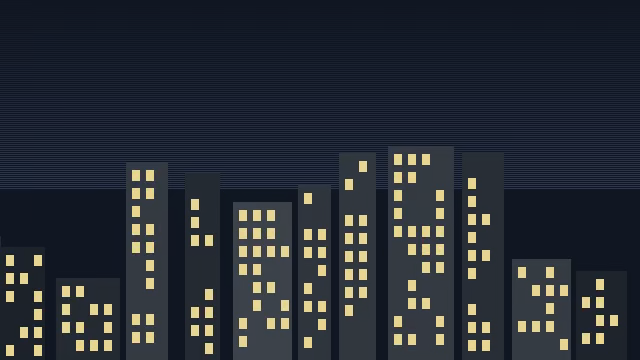

Rendered preview of the mkv file (25.7 KB). Download above for the original.
Specifications
- Resolution
- 640x360
- Fps
- 24
- Codec
- HEVC (libx265)
- Container
- Matroska
- Bit Depth
- 10
- Colour Primaries
- bt2020
- Transfer
- arib-std-b67 (HLG)
- Matrix
- bt2020nc
- Note
- the PIXELS are SDR — only the signalling is HLG
What is a .mkv file?
MKV (Matroska) is a flexible open multimedia container that can hold virtually unlimited video, audio, subtitle, and attachment tracks with rich metadata and chapters. It is codec-agnostic and popular for high-quality video with multiple audio and subtitle options. It is a superset of the design behind WebM.
How to use this file
Use an example MKV to test multi-track demuxing, subtitle and chapter extraction, codec detection, and remuxing or transcoding pipelines.
How to use this file for testing
“Colour Signalling — HLG (Hybrid Log-Gamma)” is a deterministic Novus Examples fixture for Video codecs, Compression artefacts, Video QA. One source encoded as H.264, HEVC, AV1, VP9, MJPEG, and a ProRes-compatible mezzanine, across 8/10/12-bit and 4:2:0/4:2:2/4:4:4 — for testing decoder support, transcode pipelines, and container remuxing.
Documented properties for this file: 10-bit · 24 fps. Compare results against paired or grouped companions on this page when present (clean↔damaged, searchable↔scanned, or format twins) so scores stay reproducible across runs.
Download the file once, keep the path stable in CI or local scripts, and treat the spec table as the contract: dimensions, seeds, field lists, and roles are intentional. Corrupt or invalid samples are labelled as such — expect parsers to fail loudly rather than silently accept them.
Media fixtures are short and synthetic by design. Prefer waveform or transcript ground truth in the same group when measuring ASR, trim, upscale, or sync tools; do not assume broadcast-quality masters.
Code examples
<video controls preload="metadata" width="640" src="hlg.mkv"></video>Related files
